Water Cooling System

Many clients have their own water cooling systems, of course, we also can asist you to build it.

These informations were supplied just for your reference.

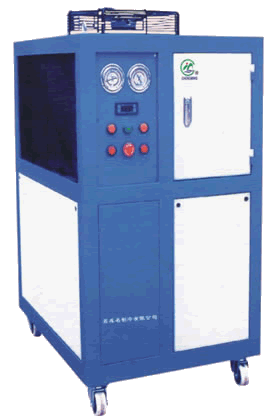

WATER COOLING MACHINE (Wind Model)

Industrial Water Cooling Macchine can be installed esasily and it is unnecesssary to be used with cooling tower. There are various specifications of machines available and cooling range varies from 7250 to 245000 kilocalories (3HP~100HP). The unit is designed with multiple safety protections to ensure safe operation.

Item
3F
5F
8F
10F
16F
20F
26F
30F
40F
50F
Cooling Capacity
W
8420
14285
22358
29036
44715
56678
72590
84785
112078
142276
Keal/Hr
7250
12300
19250
25000
38500
48800
62500
73000
96500
122500
Btu/Hr
28768
18806.4
76384
99200
152768
193638
248000
289664
382912
486068
Input Power (KW)
2.8
4.2
6.7
8.3
13.3
16.2
20.9
25
33.2
42.5
Power Supply
3PH-380V/50Hz
Cooling Fan (KW)
0.25*1
0.25*2
0.25*2
0.25*2
0.55*2
0.55*2
0.55*4
0.55*3
0.55*4
0.55*6
Refrigerant
R22(404A)
Volume of Water Tank (L)
68
85
135
135
180
180
260
400
400
550
Flow of Refrigerated Water (L/MIN)
30
45
75
75
100
150
200
250
300
360
Ambient Temp.
<=45 O C

Remark: The above-listed technical parameters are subjuect to ambient temp. at 35 oC, and water temp. at 20 oC, Technical innovation and change of technical parameters will not be informed separately. Customized non-standard is welcomed!

Cooling System
(Wind Model)

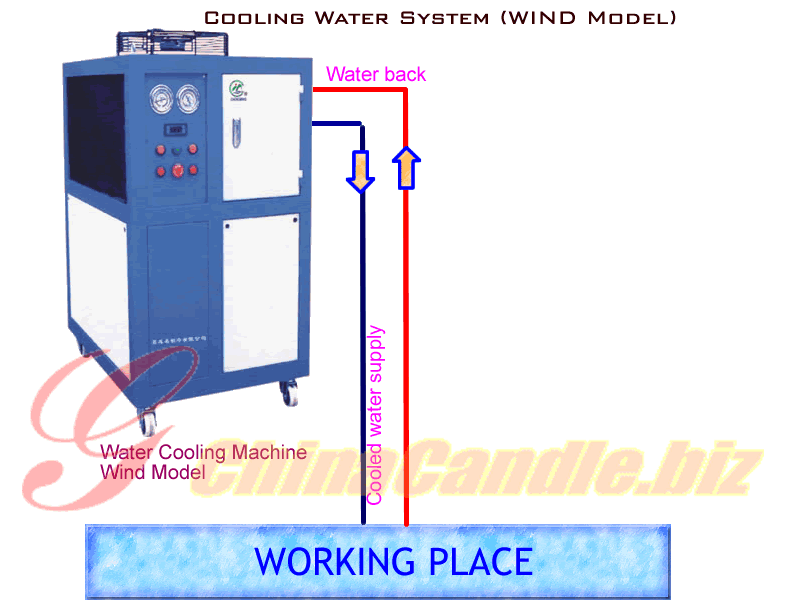

Wind Model Cooling System instruction
Cooling System
(Water Model)

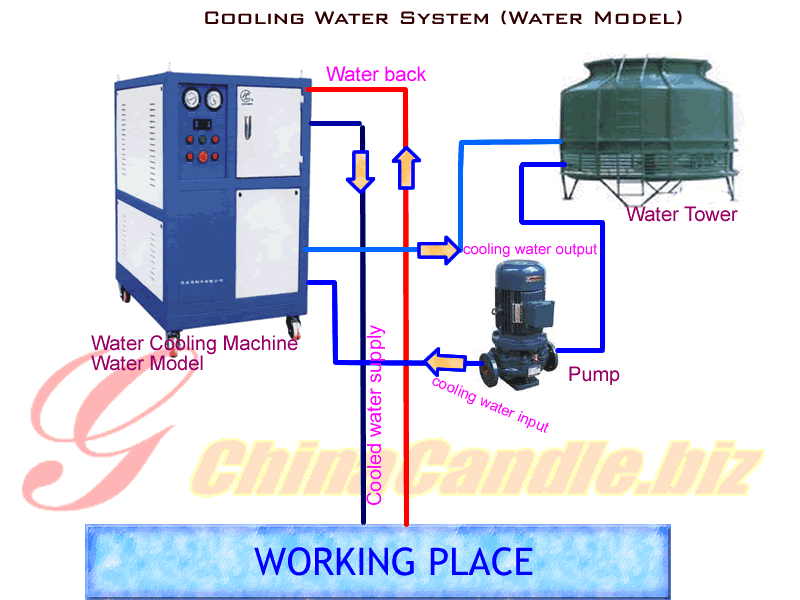

Water Model Cooling System instruction

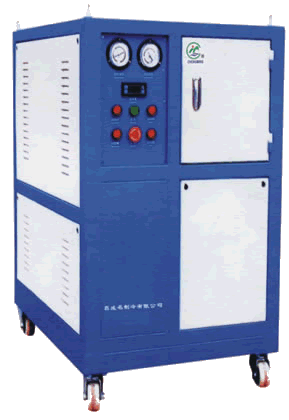

WATER COOLING MACHINE (Water Model)

Industrial Water Cooling Macchine is designed of case type, totally-enclosed case shell, and beautiful appearance. It can be placed directly on the working site, keep constant running even under conangeable terperature outdoors and prevent dust from influencing heat elimination.

Item
3F
5F
8F
10F
16F
20F
26F
30F
40F
50F
Cooling Capacity
W
8420
14285
22358
29036
44715
56678
72590
84785
112078
142276
Keal/Hr
7250
12300
19250
25000
38500
48800
62500
73000
96500
122500
Btu/Hr
28768
18806.4
76384
99200
152768
193638
248000
289664
382912
486068
Input Power (KW)
2.8
4.2
6.7
8.3
13.3
16.2
20.9
25
33.2
42.5
Power Supply
3PH-380V/50Hz
Flow of Cooling Water (L/MIN)
3
6
8
10
15
16
20
25
35
45
Refrigerant
R22(404A)
Volume of Water Tank (L)
68
85
135
135
180
180
260
400
400
550
Flow of Refrigerated Water (L/MIN)
30
45
75
75
100
150
200
250
300
360
Cooling Water Temp.
<=45 O C

Remark: The above-listed technical parameters are subjuect to ambient temp. at 35 oC, and water temp. at 20 oC, Technical innovation and change of technical parameters will not be informed separately. Customized non-standard is welcomed!

Other equipment:

Water Tower
Pump
